Electronic PCB Membrane Switch / Medical Equipment Backlit Membrane Switch

Name: Electronic PCB Membrane Switch Medical Equipment Backlit Membrane Switch
Brand: Zhongshan
Price: 1 USD

Brand Name : Zhongshan

Model Number : ZS-79

Certification : ROHSISO9001,2000

Place of Origin : Jiangsu(China mainland)

MOQ : 100 pieces

Price : negotiation

Payment Terms : 30% deposit, the 70% balance after shipment or full payment before air transportation

Supply Ability : 50000 pieces per week

Delivery Time : within one week after receiving order payments

Packaging Details : Seal plastic bags with carton boxes or due to customer detail requirements

Name : PCB Membrane Switch

material : pet,metal.LED

color : pantone

Application : Medical Equipment / Telecommunication Equipment

current contact : 2-24V

thickness : 0.3mm

Contact Now

Electronic PCB Membrane Switch / Medical Equipment Backlit Membrane Switch

PCB Membrane Switch indicators:

1. Electronic characteristics

Circuit rating: 35V (DC), 100mA, 1W

Contact resistance: 10Ω--500Ω (According the trace length and materials to comfirm)

Insulation resistance:> 100MΩ 250V DC

Contact bounce: ≤ 5ms Dielectric withstand:250VRms (50-60Hz 1min)

Life expectancy: flat type ≥ 5 million times, tactile type: ≥ 1 million times

2. Environmental parameters

Operating Temperature: -40 oC- +80oC , Storage temperature: -40oC - +85oC

PCB Membrane Switch Featurees:

1). Light weight

2). Dampproof,dustproof

3). Durable,seismic,lead wire resistance around the fracture well

4). Vacuum molding touch type key,switching type connector,set LED as a whole,convenient

installation

PCB Membrane Switch Advantages

(1) Beautiful appearance,rich and bright in color

(2) Small size,light weight,good tactility

(3) Tightness is good,moisture-proof,dustproof,waterproof,anti-corrosion and erosion of

harmful gas proof

Low cost,high lifespan

Easy to operate,intuitive,safe and reliable,in-house 100% functionally tested

(4) Customized specification is available and keys can make different shapes

Packaging & Delivery

Packaging Details

PCB Membrane Switch

first put 50pcs into poly bag, then packed into big carton, carton size according to customer's

requirement

Delivery Time 10-12days

Product Tags:

pcb membrane keypad

pcb tactile switch

China Electronic PCB Membrane Switch / Medical Equipment Backlit Membrane Switch wholesale

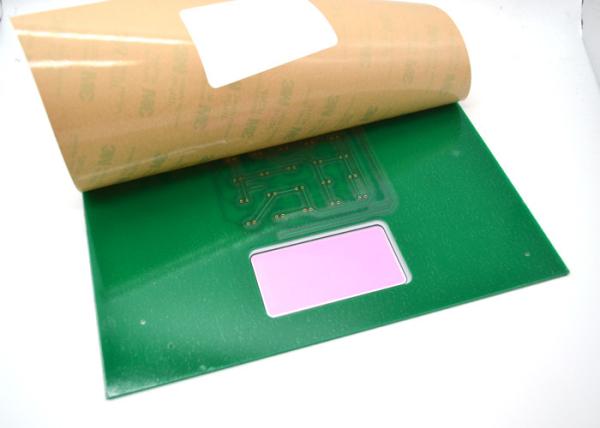

Electronic PCB Membrane Switch / Medical Equipment Backlit Membrane Switch Images
