Flat Surface Non Tactile Membrane Switch , Medical Equipment Membrane Keyboard

Name: Flat Surface Non Tactile Membrane Switch Medical Equipment Membrane Keyboard
Brand: Zhongshan Membrane Switch
Price: 1 USD

China Flat Surface Non Tactile Membrane Switch , Medical Equipment Membrane Keyboard wholesale

Brand Name : Zhongshan Membrane Switch

Model Number : ZS-07

Certification : RoHS,ISO9001:2000

Place of Origin : Jiangsu, China (Mainland)

MOQ : 100pieces

Price : negotiation

Payment Terms : 30%deposit,the 70%balance after shipment or full payment after air transportation

Supply Ability : 50000pieces per week

Delivery Time : within one week after payment

Packaging Details : seal plastic bags with carton box or due to customer detail requirements

material : Polyester(PET) And Polycarbonate(PC).

Standard Tolerances : +/- 0.10inch(+/-0.25mm)

size : 82mm*97mm

aplication : medical equipment

Real Adhesive : 3M467MP

Voltage Rating : 2-24V

Thickness : 0.3MM

Contact Now

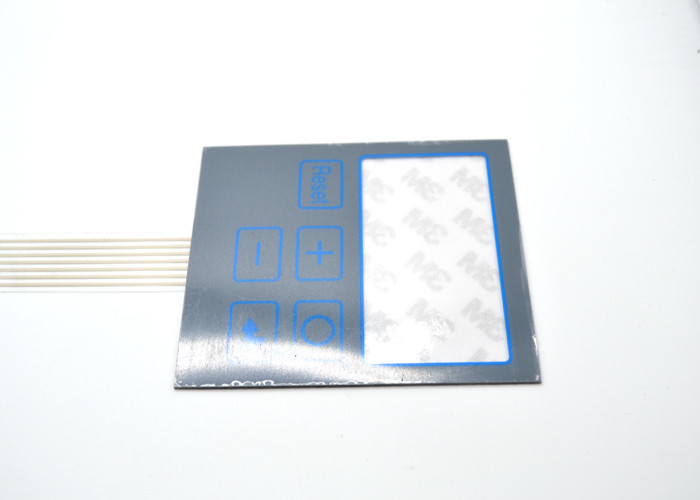

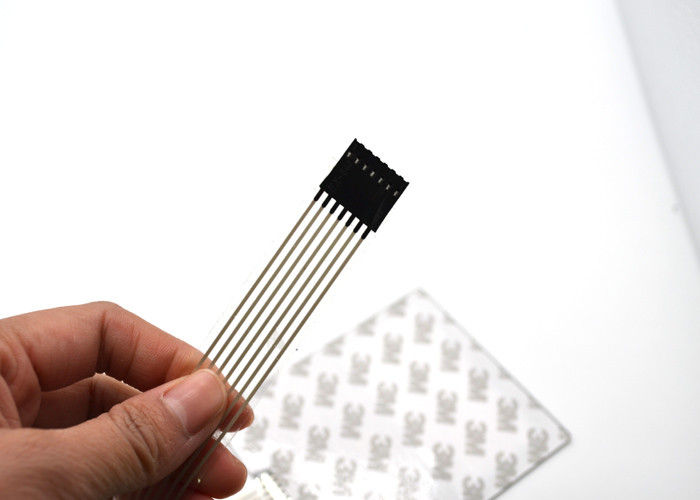

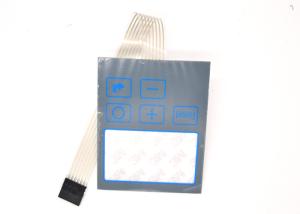

Flat non-tactile membrane switch / ZS-07/ 2 colors printing / without

metal dome,used for medical equipment

Specification:

1. Overlay Materials:The most commonly used base materials are polyester(PET) and

polycarbonate(PC).

2. Rear Adhesive:3M467MP, .Rear Adhesive 3M468MP,etc.

3. Matching color:Pantone and RALcolor matching system.

4. Gloss,semi-gloss or matte

5. non-metal dome

6. Standard Tolerances:+/- 0.10inch(+/-0.25mm)

resistance: <1Ω/cm

contact current: 25~100mA

voltage rating: 2~24V

voltage insulation:1500V

voltage endurance:250V(60Hz/min)

insulation resistance:500VDC500MΩ

active force: 0.3~3N

lifecycle : >1mil.(non-tactile)

This is a non-tactile membrane switch,only 2 colors printing on the surface.

it is used for medical equipments, mostly export to America..the characteristtic of

the switch is small in size,Light weight, compact structure, good-looking

appearance, and long service life.Outstanding damp-proof performance and dust-

proof performance, and good shock resistance.Easy installation

Packaging & Delivery

packaging details: inside,shockproof package, PE bag

outside,thickened carton, water-proof

delivery details: express,2-4 working days

air freight,5-7 working days

sea freight,25 working days
